Tabletop Paper Cutting Machine

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order:
1 Set/Sets
Delivery Time:
20 Days
Transportation:
Ocean
Port:
Qingdao Port
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.BTD-2040

BrandBuluoer

CertificationISO 9001:2008

Suitable forOther

ConditionNew

AutomationAutomatic

Cutting Thickness(mm) Plasma: 1~20 (According To The Power Supply Size)Cutting Speed (mm/min) 0~8000

System Shanghai Jiaoda Or Beijing StarfireOperating Accurancy ±0.2 Mm

Effective Cutting Width(mm) 2000Machine Width(mm) 2340

Track Length(mm) 4500Lift(mm) 100

Idle Speed 0~12000Drive Mode Precision Rack Bilateral Drive

Input Power AC380V/50Hz;AC220V/50HzTrack Gauge(mm) 2365

Supply Ability & Additional Informations

PackagingSteel box

TransportationOcean

Place of OriginJi'nan City, Shandong Province, China

CertificateISO9001

PortQingdao Port

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,EXW,FCA,CPT,CIP

Delivery Time20 Days

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
Steel box

It can be perforated and cut into 0.5mm-30mm, edge cut 40mm metal material. It adopts air-cooling, water-cooling and other cooling methods, and is equipped with imported metal cutting torch to completely solve the problem of easy burning of the cutting torch. It has its own arc voltage height adjustment, kerf compensation, arc-extinguishing self-return, anti-collision system, which can last for 24 hours. Intermittent work.
Digital control of the drive, optional Panasonic servo motor and driver, walking self-feedback system, strong anti-interference ability, fast response, high running precision, no lost step in closed-loop control, long service life.
Cutting speed is fast.

The equipment is a monolithic structure, and the vertical and horizontal guide rails and the header are integrated into one piece to facilitate the overall movement.
Bilateral drive, the machine runs smoothly.
The optical axis linear guide is used horizontally with high precision.
It adopts aluminum alloy profile frame structure, light weight, convenient disassembly and economical application.
Bench Cutting Machine, equipped with pneumatic cutting torch lifting device, aluminum, steel, iron, copper, titanium plate and other conductive metal sheet cutting, such as advertising words, crafts, sheet metal cutting.

It is especially suitable for automatic cutting and cutting of medium and thin non-ferrous metal sheets, stainless steel and carbon steel sheets.The desktop Cnc Cutting Machine is a Desktop Cutting Machine that combines high speed, precision and miniaturization. The man-machine interface is adopted, the installation is convenient, the operation is simple, the inertia is small, and the operation is stable.

Brand: Buluoer Intelligent

Advantages: Bilateral dual signal synchronous drive, high stability and long service life

Scope of application: carbon steel, low alloy steel, stainless, aluminium plate, aluminium alloy, copper plate, copper alloy and metal sheet materials.

1. 600 ° C high temperature tempering treatment of the rack and the whole processing is not deformed.

2. Bilateral drive, stable operation, high cutting precision and fast speed.

3. Original imported motor, reducer, high precision gears, racks, guides.

4. Built-in cooling and exhausting environmental protection system.

5. Fully automatic oil lubrication, low noise and maintenance free.

The Desktop Cnc Cutting Machine is a CNC bench-top cutting machine structure. The whole machine work surface adopts the integral rim structure, which has the characteristics of stable and reliable operation and long service life. The model adopts optical axis linear guide and bilateral drive. It can realize the cutting of any metal materials according to any pattern, with good effect, no dross and burr, widely used for cutting carbon steel, low alloy steel, stainless steel, copper and copper all kinds of metal plate materials.

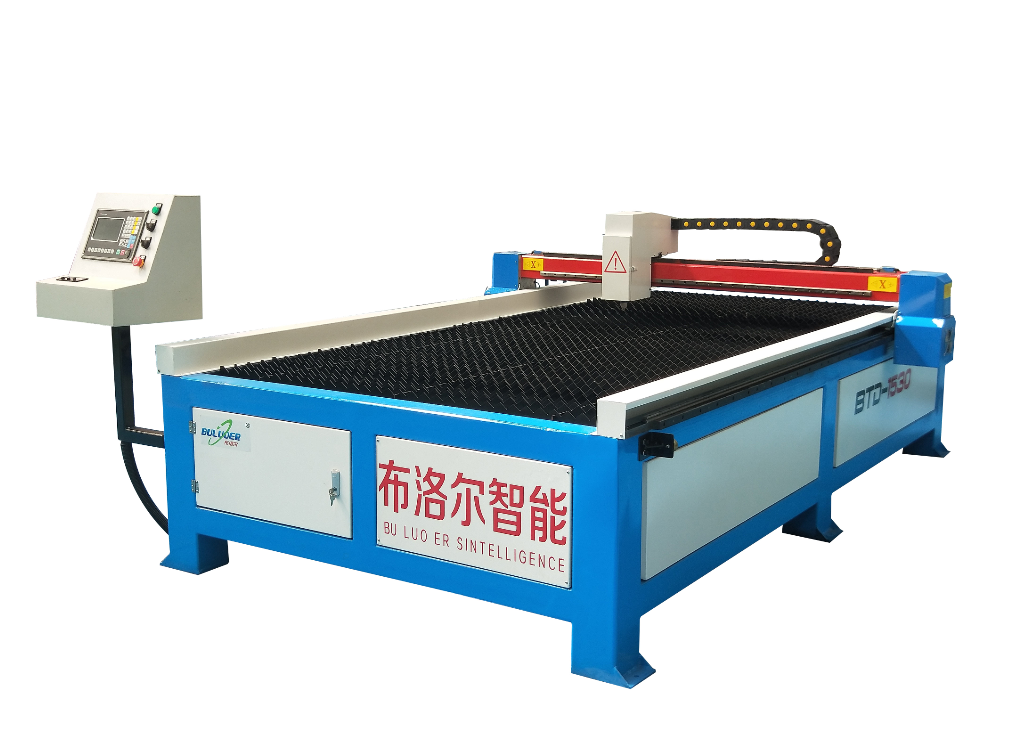

Desktop CNC Cutting Machine
