Cnc Cutting Machine with flame and plasma cutting is suitable for factories with small steel plate feeding. High reliability and cost-effective. It can be used for cutting large, medium and small steel plates of various carbon steel, manganese steel, stainless steel and other metal materials.
The unit can be equipped with multiple cutting torches and other options and accessories. It has a wide range of standard shapes and can be used to cut nests of any shape parts in combination with Australian nesting software.
The main body of the equipment adopts a gantry type mechanical structure. The beam and the end beam are made of square tube and plate, profile welded surface, and combined with vibration aging and natural aging to eliminate the stress generated during the welding process. The guide rails are made of high-strength 43kg heavy rails.
The longitudinal/horizontal drive adopts the rack-and-pinion-free flexible transmission technology, and the rack accuracy is seven or more. It is equipped with the high-precision German Neugart original reducer, and the coaxial servo-pulse encoder of AC servo motor samples and feedbacks the speed and position, and then compares the secondary signals of the servo system and the numerical control system to realize the positioning transmission.
The pneumatic system has a stepless automatic perforation technology. The preheating time of the 60mm steel plate is only 12 seconds, and the perforation thickness is 100mm. The stepless automatic perforation function reduces the metal splash and greatly improves the service life of the cutting nozzle.

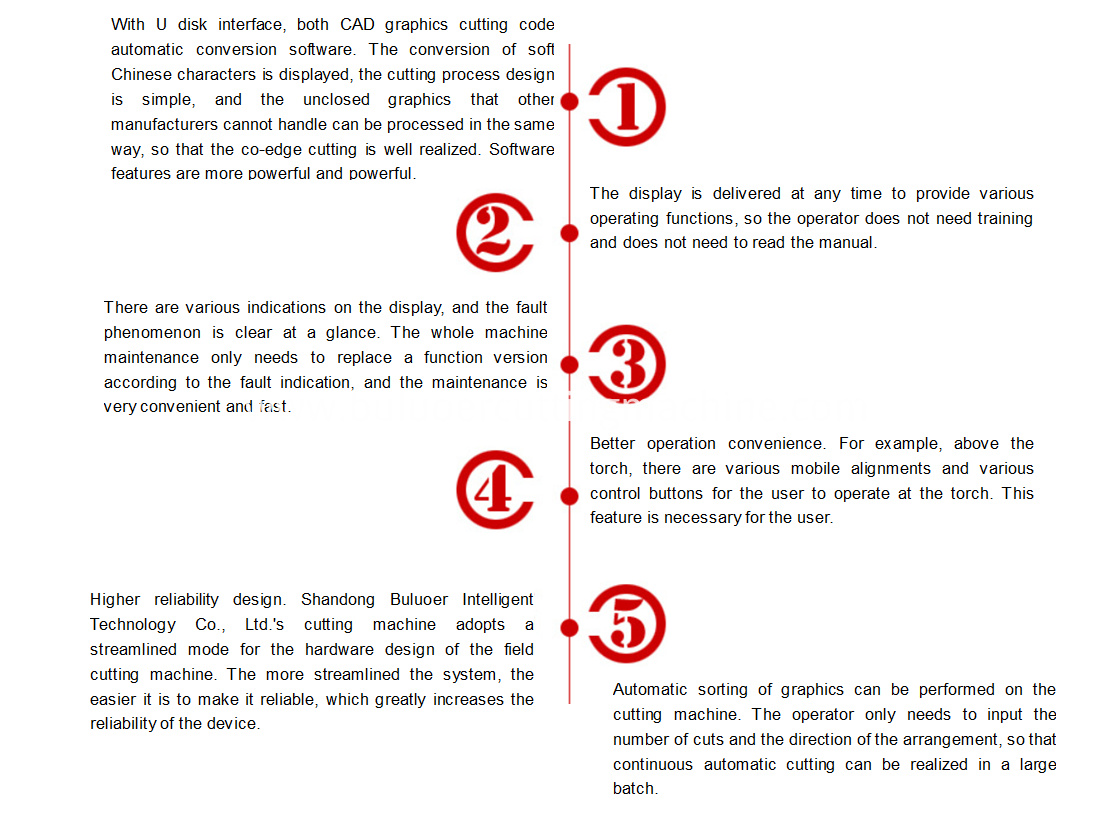

Exhibation Hall
Product parameters
| Type | BLZT-4080(BLDH seires can be equiped lath) |
| Input power | AC380/50Hz;AC220V/50Hz |
| Track gauge(mm) | 4035 |
| Effective cutting width(mm) | 3300 |
| Machine width(mm) | 4300 |
| Track length(mm) | 8000 |
| Number of standard cutting torch(set) | 2 |
| Number of lath cutting torch (set) | ≤10 |
| Minimum wideth of lath | 80mm |
| Lift(mm) | 200 |
| Cutting thickness(mm) | Flame: 5~200 Plasma: 1~30(According to the power supply size) |
| Cutting speed (mm/min) | Flame: 100~1000 Plasma: 450~5000 |
| Idle speed | 0~8000 |
| Drive mode | Bilateral drive |
| System | Shanghai Jiaoda or Beijing Starfire |
| Operating accurancy | ±0.5mm |
Straight line Cutting Machine (CNC cutting machine)
CNC cutting machine is a high-efficiency hot cutting automation equipment that combines computer control, precision machinery and oxygen-acetylene gas cutting. Its CNC torch can cut plates of any shape. A plurality of torches are mounted on the other side of the gantry, which can be used to cut a plurality of straight steel strips, and the steel sheets are simultaneously heated and cooled during cutting, thereby fundamentally eliminating the side bend phenomenon.
The shape is as shown. The cutting machine is a gantry type structure, and the control system adopts a newly developed special system for CNC cutting machine. (The cutting machine has a wide range of lateral spans, all of which are bilaterally driven. Multiple torches can be configured according to user requirements, which can be configured as profile cutting. It is used in combination with strip cutting, which greatly improves the production efficiency and reduces the thermal deformation during striping.
CNC and straight strip
When a piece of steel plate needs to be cut into several straight strips, a straight cutting torch can be arranged on the numerical control cutting machine, and the steel plate can be cut into a plurality of straight strips at one time, which effectively improves the cutting efficiency and can make a straight strip when cutting. The sides are heated evenly to avoid large thermal deformation.
It adopts bilateral drive, stable operation, good configuration and high work efficiency. It can be used for cutting large, medium and small steel strips of various carbon steel, manganese steel and other metal materials. Multiple pumping torches can be configured according to user requirements. CNC special-shaped torch system can also be configured according to requirements. Capacitive flame automatic height adjustment system can be selected.
