5 Axis Plasma Cutting Machine
5 Axis Plasma Cutting Machine
5 Axis Plasma Cutting Machine
  • 5 Axis Plasma Cutting Machine
  • 5 Axis Plasma Cutting Machine
  • 5 Axis Plasma Cutting Machine

5 Axis Plasma Cutting Machine

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 20 Days

Basic Info

Model No.: BLDH-Z-60100

Condition: New

Certification: ISO 9001:2000, ISO 9001:2008

Automation: Automatic

Suitable for: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Other

Input Power AC380V/50Hz;AC220V/50Hz: Track Gauge(mm) 5000

Machine Width(mm) 5500: Effective Cutting Width(mm) 4300

Track Length(mm) 8000: Lift(mm) 200

Cutting Speed (mm/min) Flame Cutting:100~1000 Plasma Cutting: 450~5000: Cutting Thickness(mm) Flame Cutting: 5~200Plasma Cutting: 1~30(According To The Power Supply Size)

Idle Speed(mm/min) 0~8000: Drive Mode Bilateral Drive

System Shanghai Jiaoda Or Beijing Starfire: Operating Accurancy ±0.5mm

Additional Info

Packaging: Steel box

Brand: Buluoer

Transportation: Ocean

Place of Origin: Ji'nan City, Shandong Province, China

Certificate: ISO9001

Port: Qingdao Port

Product Description

Main Specifications
1. Cutting shape: Programmable cutting of any flat shape steel plate parts composed of straight lines and arcs;
2. Cutting accuracy: National standard JB/T10045.3-99;
3. Cutting width: 4m, 5m, 6m and other specifications are available;
5. Drive mode: bilateral drive;
6. Torch configuration: 1 standard, optional flame or plasma torch, can also be customized according to user needs;
7. Cutting thickness: The flame can be cut up to 200mm, and the plasma cutting thickness depends on the size of the selected power supply;
8. Ignition height adjustment: automatic ignition, electric height adjustment;
9. CNC system: easy to use, stable performance;
10. CNC programming: Fully automatic graphical programming software based on AutoCAD;

The drive system is a domestic stepping drive. According to the user's needs, the world's top products can be selected--Imported Japanese Panasonic AC servo drive/domestic servo drive, which makes the whole machine run more smoothly, the speed shift range is wider, the acceleration time is short; easy to use Automatic programming system makes CNC programming no longer complicated and easy;

Professional industry technology elite, leading scientific and technological innovation team, high-precision large-scale CNC milling machine processing center, advanced equipment and testing instruments, sophisticated technology and strict quality management system, fully adopting new technologies, new processes, new materials, new Equipment to ensure product stability and reliability. No matter how the world changes, the craftsmanship will continue to be passed down.
Processing precision and stability beyond imagination

The perfect quality is the artistic expression of the craftsman spirit.
Due to the use of a dedicated servo technology platform, its processing accuracy and stability are greatly improved. In addition to being equipped with a common plasma power supply, it can also match the fine plasma power supply to achieve laser-like cutting levels. It has its own research center and testing laboratory to ensure the source control and process control of the products, and the key components are not repaired.
The flame Cnc Cutting Machine is widely used in the cutting and processing of various carbon steel metal plates in shipbuilding, construction, petrochemical, machinery, metallurgy, sheet metal and other industries.


Brand: Buluoer Intelligent

Cutting mode: Flame cutting, Plasma cutting

Scope of application: carbon steel, galvanized sheet, stainless, aluminium plate and metal sheet materials.


1.The structure has good rigidity, high transmission precision, bilateral drive and smooth operation..

2.Automatic compensation, positioning, breakpoint continuous cutting, recovery function is complete.

3.Automatic FASTCAM graphic programming software, simple nesting.

4.Flame / plasma dual NC cutting system, easy to operate.

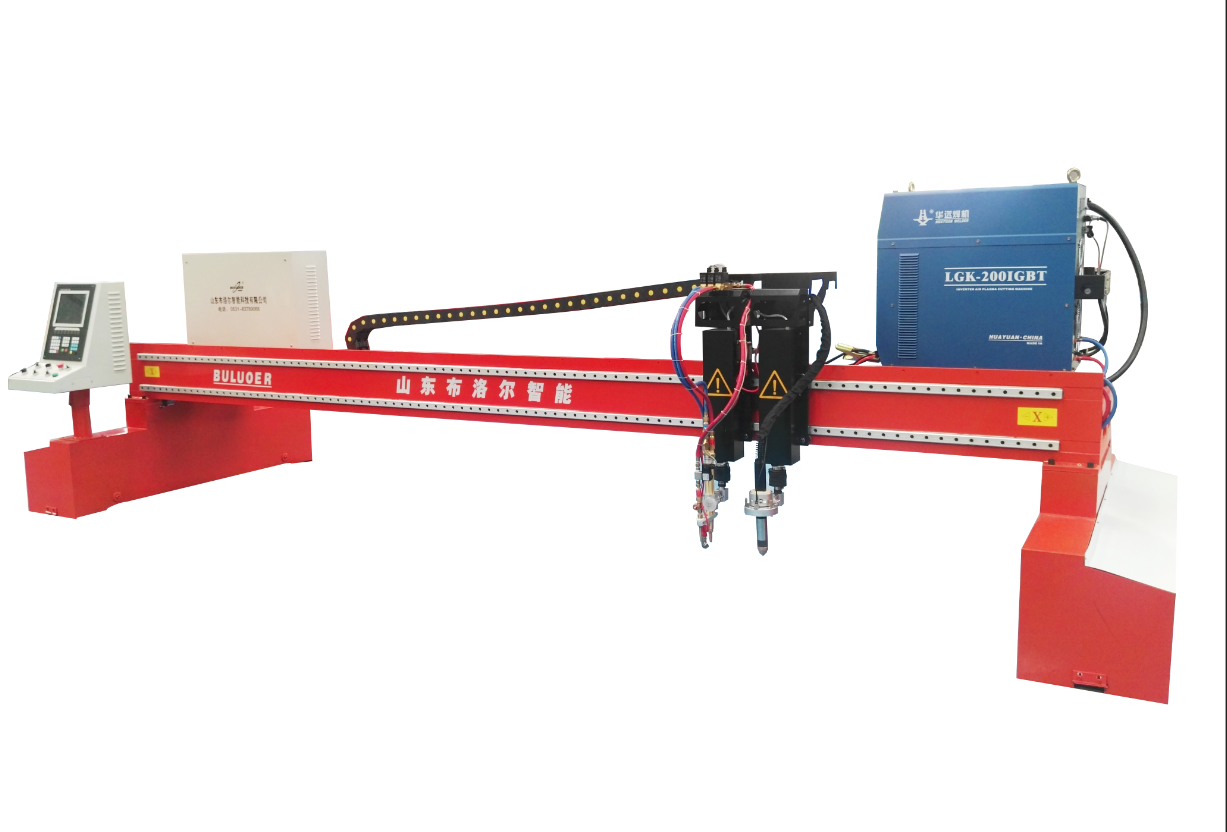

The Heavy dragon flame plasma CNC Cutting Machine series is a stereotyped product carefully developed by our company. It is a numerical control equipment for metal sheet blanking. It not only has an appearance atmosphere, but also has stable operation, high work efficiency and long service life. It can realize various metal materials. Cut by any pattern. The cut face after cutting does not need to be surface-processed under normal circumstances, and has the advantages of high automation, convenient.

This Gantry Cutting Machine CNC is a gantry type structure, which is a numerical control equipment for metal sheet cutting. It can realize cutting of any metal material in any pattern. The utility model has the advantages of high automation degree, convenient use, high precision, high reliability, simple operation and maintenance, and the like, and is widely applicable to cutting of metal sheets in various mechanical manufacturing industries.

Heavy Gantry CNC Cutting Machine


Looking for ideal Used Plasma Cutting Machine For Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Gantry Cutting Machine CNC are quality guaranteed. We are China Origin Factory of Plasma Cutting Machines Australia. If you have any question, please feel free to contact us.
